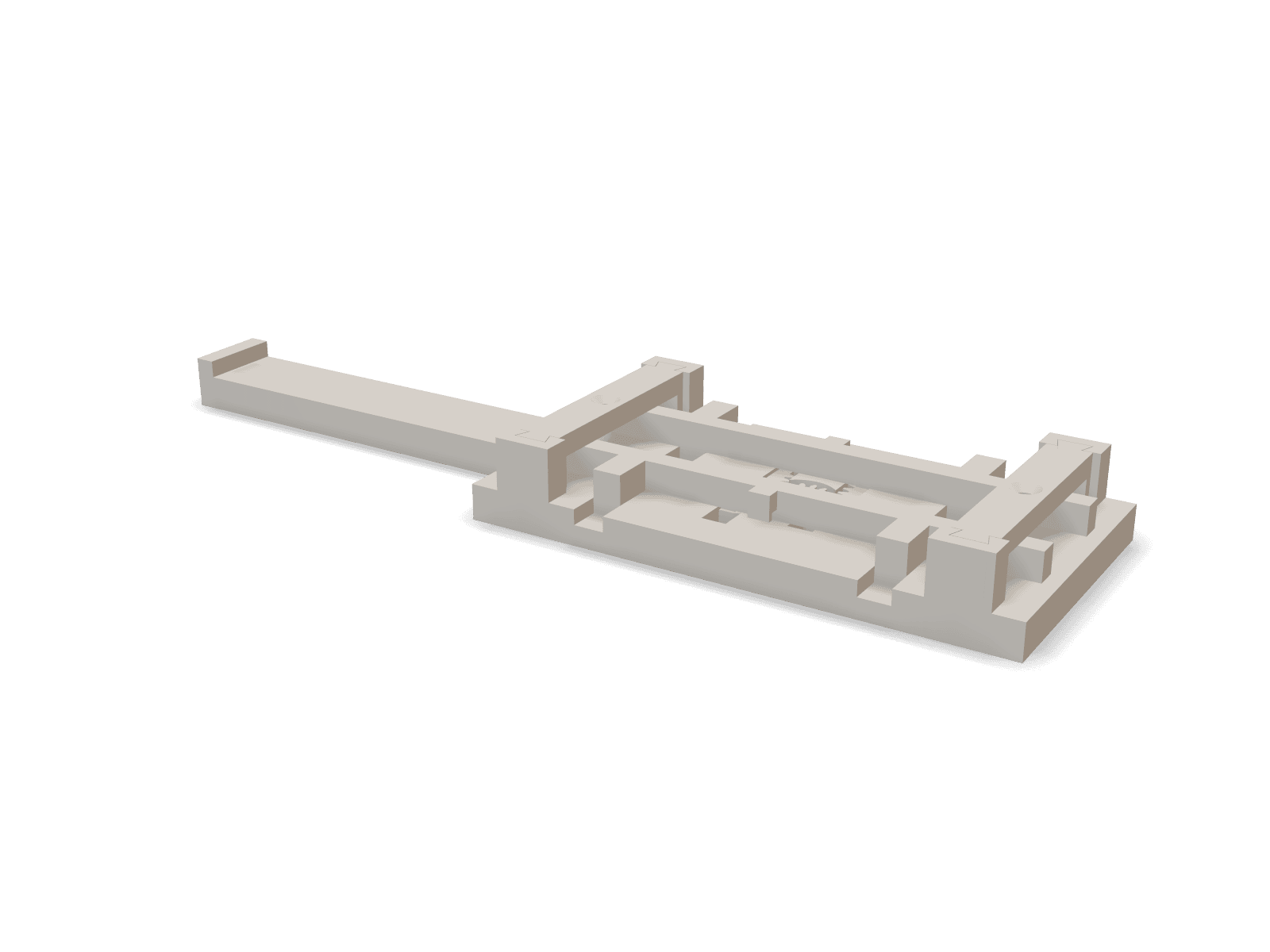

Slide Marking Jig for the Drawer Cradle

Specs

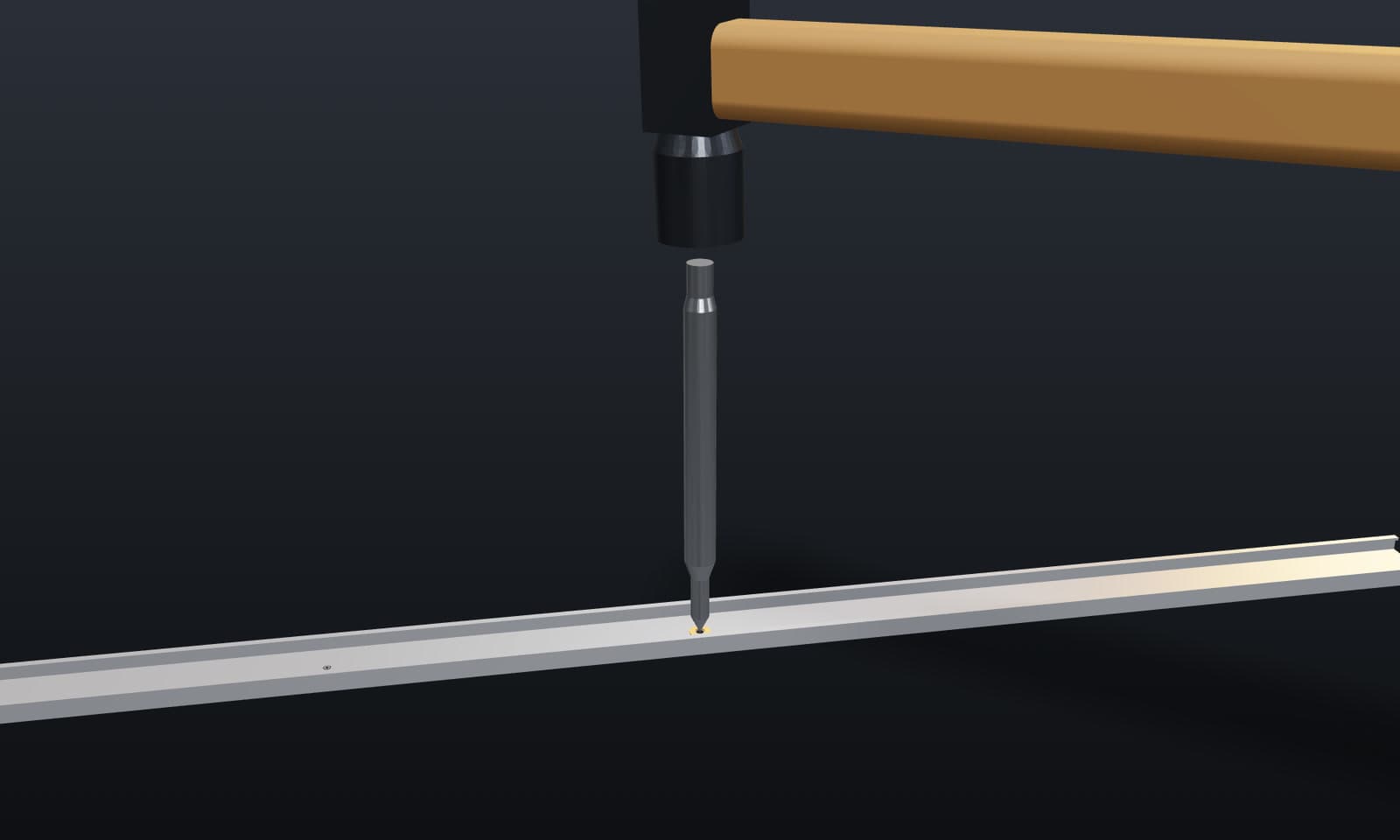

Marks

2 holes, 118 mm apart, on the slide's centerline

First hole

134 mm from the slide's front end

Slide height

20–40 mm (self-centering); profile up to 8 mm deep

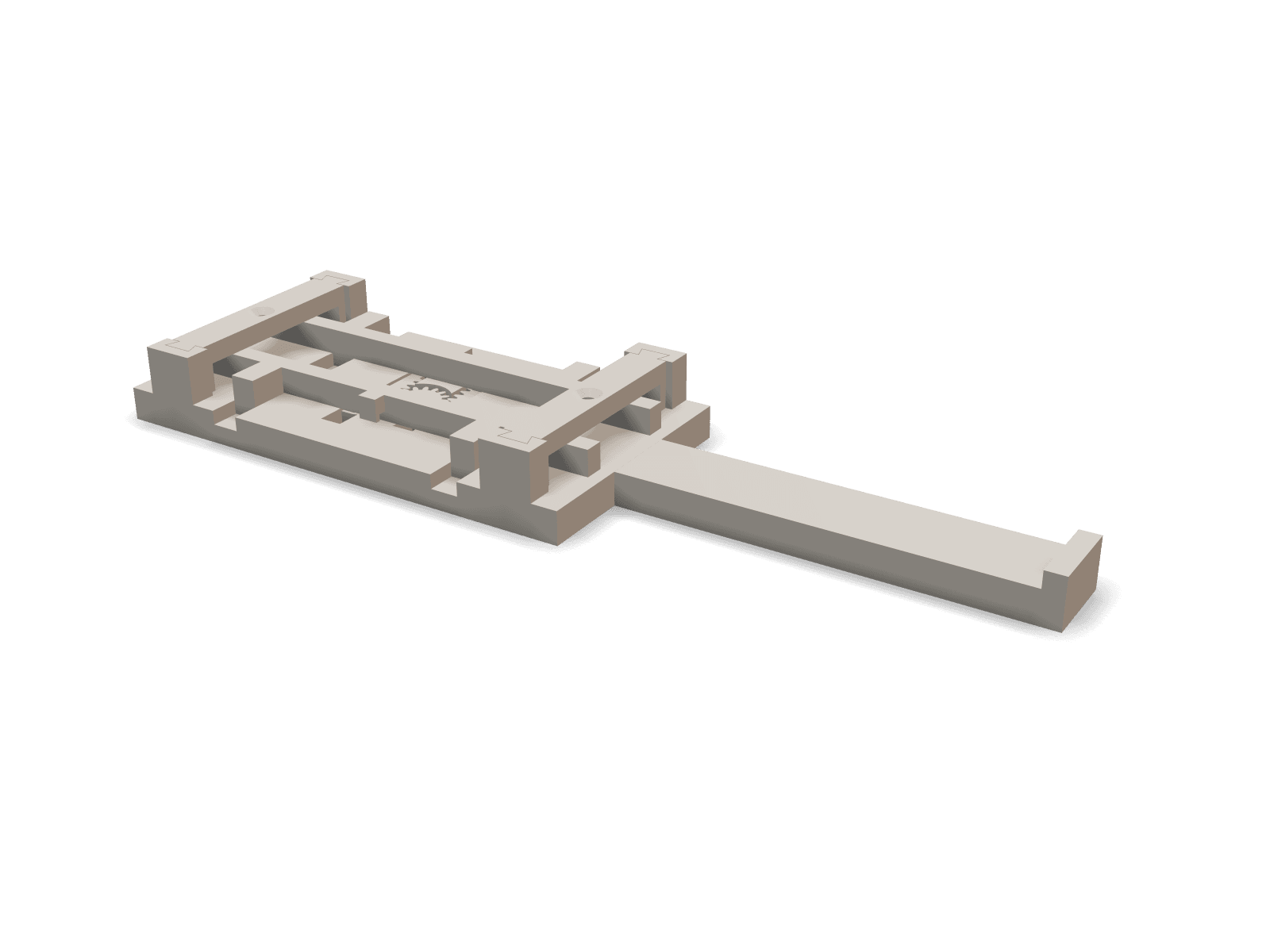

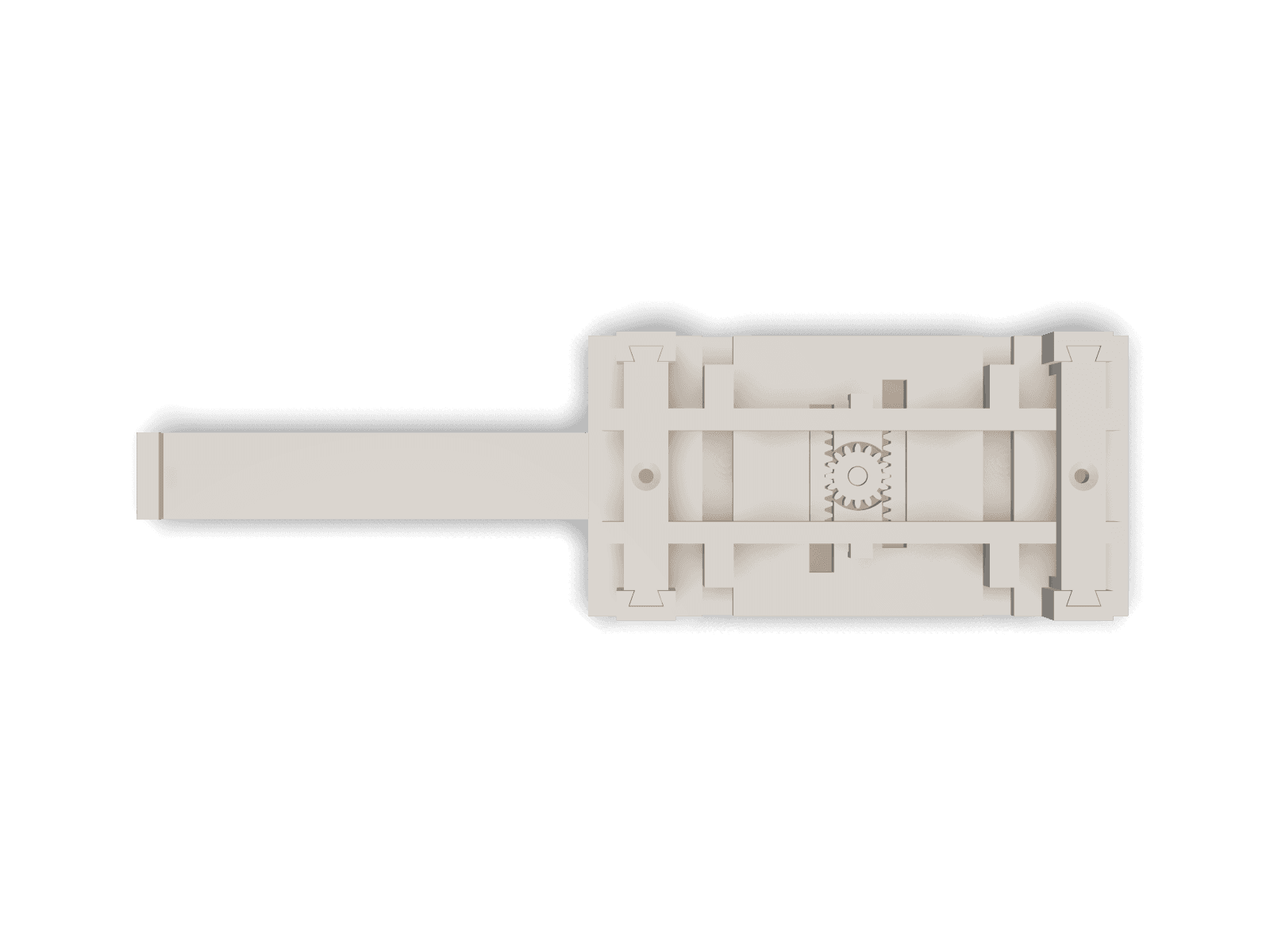

Assembled

274 × 78 × 25 mm

Printed parts

9 (6 files), each within 180 × 180 mm

Drill

7/32 in (5.5 mm): clearance for the cradle's M5 screws

Material

PLA or PETG
